SHIPLAP TONGUE & GROOVE AND V-JOINT CLADDING

ATC supplies a large range of cladding boards in a variety of a sizes, profiles and finishes. Dressed, rough sawn, seasoned and green timbers available in a range of species. Timber cladding is very versatile and provdes the perfect opporunity for architects & builders to craft what the owner envisiaged.



Timbers include but are not limited to Western Red Cedar, Silvertop Ash, Blackbutt, Spotted Gum and Ironbark. Also available in Cypress and Japanese Charred Timber.

Timber cladding is an interlocking T&G system that allows for a concealed fix. Cladding fits together, allowing for easy installation, secret fixings giving it an smoother look overall.

Typical profiles are shiplap T&G or V-Joint T&G. Other profiles available upon request.

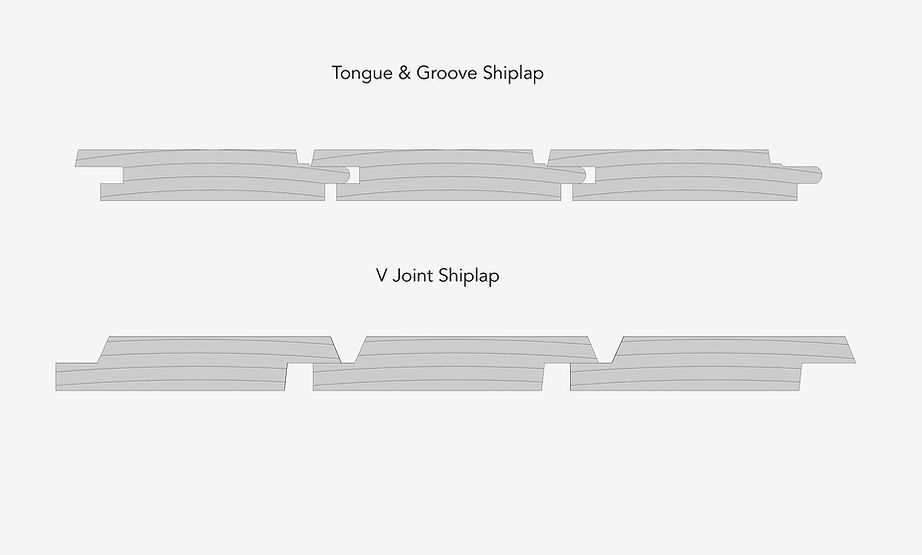

Shiplap T&G

Shiplap lining is an interlocking Tongue & Groove system that is designed to be secret fixed so the screws/nails are not visible. Shiplap profile incorporates a square channel approx 5-10mm (see image below).

V-Joint T&G

V-joint lining is an interlocking Tongue & Groove system that is designed to be secret fixed so the screws/nails are not visible. V-Joint allows timber boards to be joined together with a shadow line creating a decorative distinction between boards. Once fitted together, they form a V — hence the name.

With our experience, we can help you to select the right timber cladding for your project, budget and style.

V-Joins & T&G.jpg
